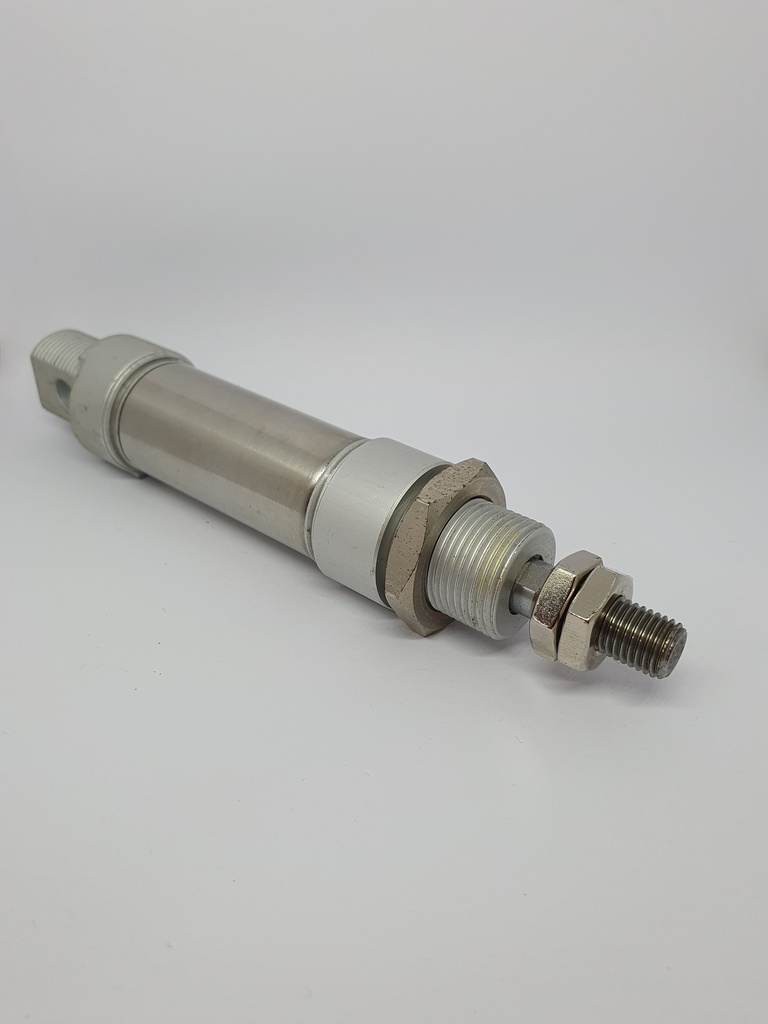

MCMI Miniature Round ISO Cylinders -

Miniature Round Cylinders

Double Acting and Spring Return

Comprehensive Range of Bore sizes and Strokes:

Tube ID: 8, 10, 12, 16, 20, 25, 32, 40 mm

Stroke (Double Acting): 10, 25, 40, 50, 75, 80, 100, 125, 150, 160, 200, 250, 300, 350, 400, 450, 500 mm

Stroke (Spring Return): 15, 25, 50, 75, 100, 125, 150 mm

Non Lubrication

High quality with Long Service Life - anodised aluminium cylinder tubes offer corrosion resistance and low internal friction

Comprehensive range of cylinder mountings and accessories available for rigid or flexible mounting

ISO-6432 Standard Specification - worldwide interchangeability

Magnetic as Standard

Operating Pressure Range: 0.06-1 MPa, 0.08-1 MPa, 0.1-1 MPa
